Oписание продукта

I.Package included:
  • 1 x Single Axis CNC Motion Controller
  • 1 x USB Cables
  • 1 x English Manual (we will send it to you by email. Please let me know your email address when you purchase)

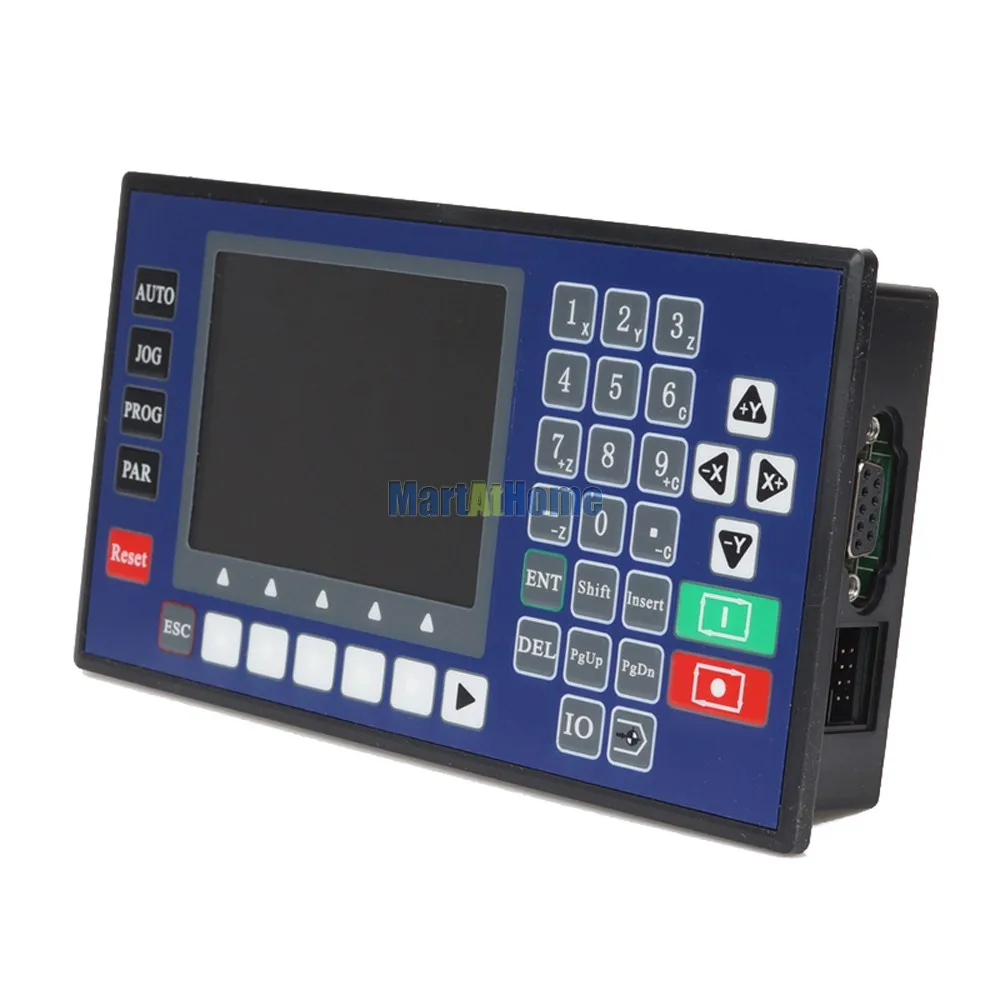

The TC55 panel-type motion controller (CNC system) uses high-performance 32-bit CPU. The drive device adopts subdivision stepping motor or AC servo motor. It is equipped with LCD monitor and fully enclosed touch-type operating keyboard. The system has high reliability, high precision, low noise, easy to operate etc. This controller can control 1-3 motor motion and realize Point to Point, linear interpolation, circular interpolation and other operations. It has loop, jump and simple PLC functions etc. Simple and clear parameters bring you convenient and fast operation. Input/output setting functions are convenient for your to use and maintain and applicable to all kinds of 1-3 axis motion device.
III.Product features:
  • The boot screen can be modified
  • Controller or upper computer dual-mode programming
  • Independent 24V power supply reverses connection protection
  • IO optically-coupled isolation
  • Output short circuit protection
  • Manual positive or reverse rotation can be controlled by the external switches synchronously
  • Simple PLC logic
  • The parameter area password can be set
IV.Applicable Product Type:
CNC drilling machine system, CNC lathe system, CNC milling machine system, CNC grinding machine system cutting machine control system, welding control system, dispenser control system, feeding control system displacement platform, one-dimensional control platform, two-dimensional control platform, three-dimensional control platform threading machine control system, screw driving machine control system spraying production line control system, assembly production line control system,  the meter counter control system
V.Technical characteristics:
  • Automatically execute: Actual running, Empty running, Single-step execution, Terminate program, Start and Pause function
  • Manual operation: Manual high speed, Manual low speed, Jog operation, Back to program zero, back to mechanical zero
  • Program management: Edit program, Program read-in, Delete program, Save program
  • Parameter settings: Set various control parameters of processing and operation; get the best status of processing effect
VI.System parameters:
  • High-performance, high-speed 32-bit CPU
  • High-grade black and white double color LCD monitor (resolution: 192 ×64)
  • Special motion control chip (signal output: 5V TTL)
  • Universal customizable input / output (16 photoelectric isolated 24V inputs, 8 relay outputs)
  • User processing program memory (can store 20 programs)
  • Minimum data unit 0.001 mm
  • Maximum data size ±99999.999mm
  • Maximum pulse output frequency 150 KHz
  • System main functions are automatic, manual, program editing, system parameters, self-check, settings, etc.
  • Panel type installation structure
  • Dimension 172 x 94 x 30, installing size 164 x 86
  • Power supply requirements: ≥DC 24V/40W
  • Environmental requirements
  • Working temperature: 0-60 C
  • Relative humidity: 5-90% no condensation
